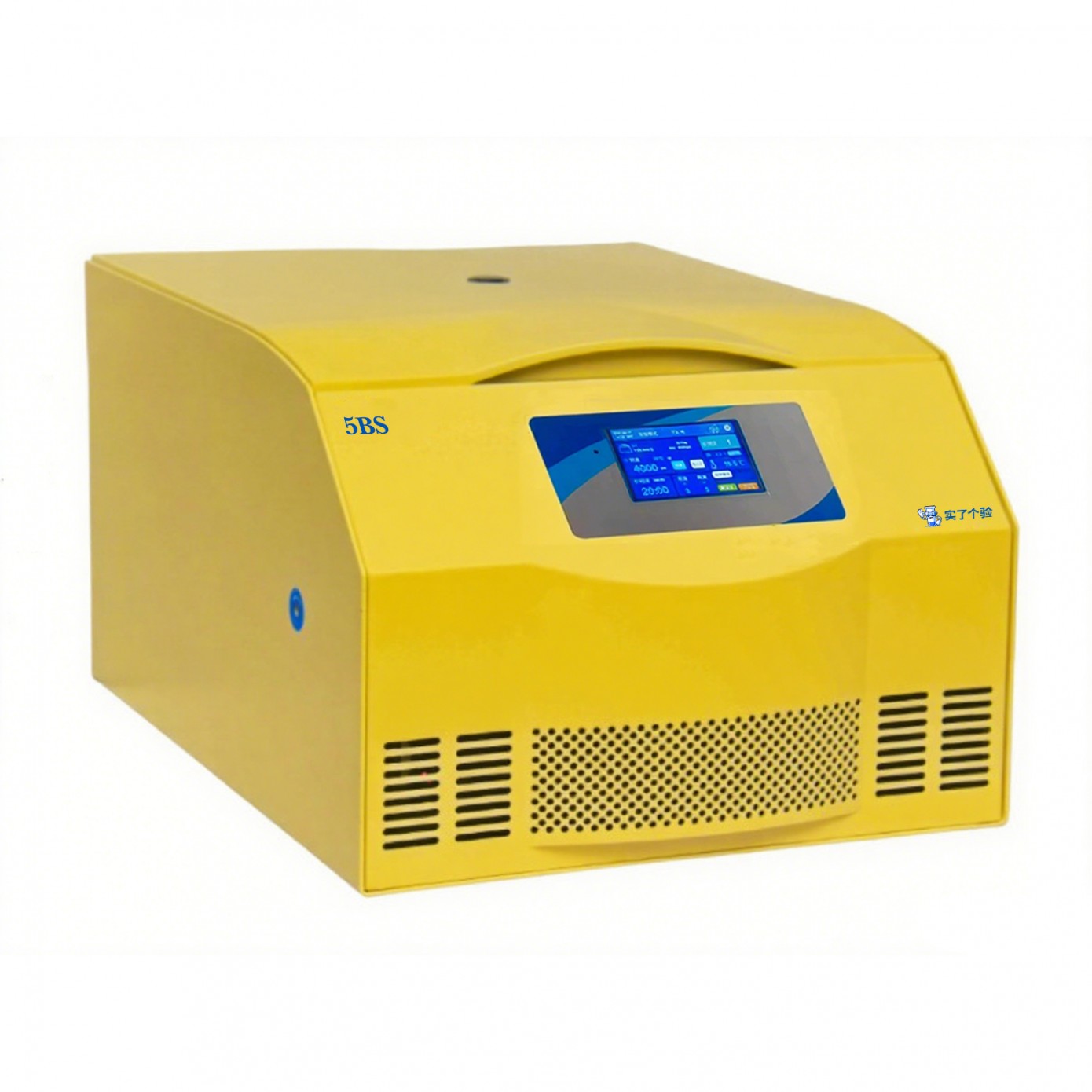

5BS desktop low-speed large capacity centrifuge

Manufacturer:Changsha Shi Ge Yan Biotechnology Co., Ltd.
Warranty service: Three year warranty, replacement only, no repair

1、 Product positioning and application value

With the continuous development of life sciences and medical testing, the demand for sample separation in laboratories is showing a trend of large capacity, diversity, and high reliability. Especially in hospitals, blood stations, and research institutes, the processing capacity of biological samples such as serum, plasma, and urine is increasing day by day, which requires centrifuges to have both sufficient capacity and precise control and safety protection capabilities.

The 5BS desktop low-speed large capacity centrifuge is a high-performance product designed specifically for this demand.It adopts advanced driving technology, intelligent control system, and multifunctional rotor adaptation scheme, which can not only meet the conventional separation of large quantities of samples, but also meet the fine requirements of scientific research and testing. It is an indispensable equipment in modern laboratories.

2、 Core Highlights and Design Advantages

High performance motor system

High torque brushless variable frequency motor, maintenance free, dust-free, and has a long service life.

Provide fast and smooth acceleration and deceleration performance to improve experimental efficiency.

Intelligent microcomputer control

High definition touch screen "intelligent system" that intuitively displays speed, time, temperature, and operating status.

Real time synchronization of key information such as rotor model, maximum speed, and maximum centrifugal force on the interface.

Support storing and calling 100 commonly used programs, simplifying daily operation processes.

Security protection design

Induction automatic electric suction door lock to avoid accidentally opening the cover during operation.

Automatic detection and protection for overspeed and imbalance, and automatic shutdown in case of abnormal operation.

Multi layer protective structure, all steel body and stainless steel centrifugal chamber, safe and stable.

Convenient rotor connection

Adopting a patented spring cone sleeve connection method to achieve 360 degree locking of the rotor.

Fast loading and unloading, no directionality, avoiding misoperation.

Diversified operational choices

Provide 9 acceleration rates and 10 deceleration rates.

Users can flexibly choose according to their sample requirements to achieve the best separation effect.

Structure and Vibration Reduction

The whole machine is made of all steel structure, and the cavity is made of 304 stainless steel, which is durable and corrosion-resistant.

Three level vibration reduction and automatic balancing function, low noise (≤ 65 dBA), smooth operation.

3、 Technical parameters

Maximum speed: 5000 r/min

Maximum centrifugal force: 4730 × g

Maximum capacity: 4 × 800 ml horizontal rotor

Speed accuracy: ± 10 r/min

Timing range: 1s-99h59min59s

Noise level: ≤ 65 dBA

Power requirements: AC220V, 50Hz, 5A

Net weight of the whole machine: 67 kg

Dimensions: 680 × 500 × 385 mm

Packaging size: 880 × 580 × 560 mm (wooden crate packaging)

These parameters highlight the advantages of the 5BS centrifuge in balancing large capacity and high performance, especially suitable for large-scale sample processing needs.

4、 Rotor and adaptation scheme

The 5BS desktop low-speed large capacity centrifuge provides a variety of rotor and adapter combinations to meet different experimental scenarios:

Horizontal rotor

4 x 800 ml round cup, maximum centrifugal force 3450 x g, optional biosafety cover.

4 × 25 × 5/7 ml tube holder, compatible with conventional blood collection tubes.

Basket configuration (round cup/square cup 500ml), can be paired with 2-7ml, 10ml, 50ml tube adapters.

ANGLE ROTOR

30 × 15 ml, maximum speed of 5000 r/min, maximum centrifugal force of 3830 × g.

12 × 50 ml, maximum centrifugal force 3860 × g.

6 × 100 ml, maximum centrifugal force 3130 × g.

12 × 100 ml, maximum centrifugal force 2970 × g.

Specialized rotor

16 x Gabor fat meter (2000 r/min, 896 x g), specifically designed for dairy testing.

4 x horizontal rotor for pasteurized milk fat bottle, with a maximum centrifugal force of 3830 x g.

Enzyme labeled plate rotor (2 × 5 × 96 wells or 4 × 4 × 96 wells), suitable for immunology and biochemistry experiments.

This diversified configuration ensures that the 5BS centrifuge can be used for multiple purposes, meeting both clinical needs and serving scientific research and teaching.

5、 Security and Certification Assurance

All steel body+304 stainless steel cavity, sturdy, durable, and corrosion-resistant.

Multi layer protection design to prevent safety hazards in abnormal situations.

Electronic door lock+automatic monitoring system, ensuring real-time operation safety.

International authoritative certification: The product has passed ISO9001, ISO13485, CE certification, and has CFDA filing and production qualifications, with reliable quality.

6、 Applicable industries and application scenarios

Hospitals and blood stations: Separation of serum, plasma, and urine samples.

Research laboratories: biology, medicine, chemistry, physics experiments.

Food and dairy testing: The milk fat meter rotor supports quality testing of dairy products.

Teaching Laboratory: Experimental courses in universities, suitable for large-scale sample teaching operations.

Immunology and Biochemistry: The enzyme-linked immunosorbent assay (ELISA) plate rotor meets the requirements of porous plate detection.

7、 After sales guarantee

manufactor:Changsha Shi Ge Yan Biotechnology Co., Ltd.

Three year warranty, replacement only, no repair: If there is a non-human error during the warranty period, the entire machine or component will be replaced directly.

Technical support: Provide remote training and on-site guidance to help users quickly master the operating methods.

Continuous service: Long term supply of spare parts to ensure the long-term stable operation of equipment.

8、 Comprehensive evaluation

The 5BS desktop low-speed large capacity centrifuge is a laboratory core equipment that balances large capacity processing, high-performance separation, and intelligent operation.

Reason for recommendation:

Large capacity (up to 4 × 800 ml per use), meeting high throughput requirements.

Intelligent touch system, intuitive and convenient operation.

Multiple safety designs ensure stable and reliable operation.

Rich rotor configuration, versatile for one machine.

Three year warranty, replacement only, no repair, worry free after-sales support.

In summary, the 5BS centrifuge is not only a reliable assistant for hospitals and blood stations, but also a long-term partner for research and teaching laboratories.
