Manufacturer: Changsha Shi Ge Yan Biotechnology Co., Ltd
Warranty service: 3-year warranty, replacement only, no repair

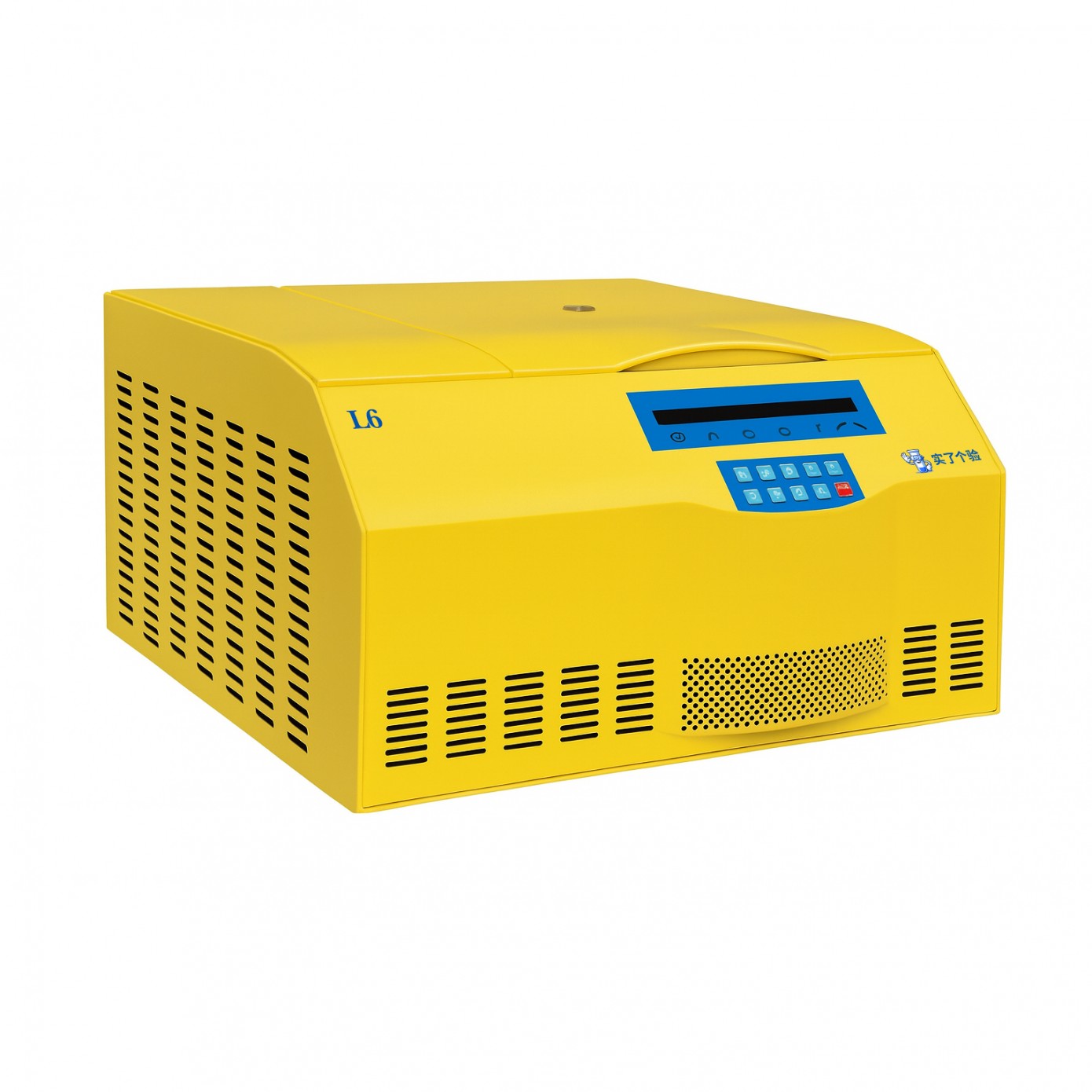

The L6 desktop low-speed freeze centrifuge is a high-performance freeze centrifuge equipment tailored by Changsha Shi Ge Yan Biotechnology Co., Ltd. for research, clinical, and testing laboratories. It not only integrates advanced low-speed centrifugation technology, but also is equipped with an efficient refrigeration system to ensure sample separation efficiency while maximizing the protection of temperature sensitive samples.
Compared with traditional low-speed centrifuges, L6 has significant improvements in structural stability, temperature control accuracy, and operating experience. The device has a compact appearance design and occupies a small area. It can be placed on the laboratory bench or easily adapted to experimental environments with shelves, saving a lot of space for the laboratory.
L6 is widely used in fields such as blood separation, molecular biology research, immunological experiments, drug development, food inspection, environmental testing, etc. It is particularly suitable for processing serum, plasma, protein, nucleic acid, and radioimmunoassay samples that require low-temperature preservation.
High performance brushless DC variable frequency motor
Strong power, maintenance free design, long service life.
No dust pollution, high cleanliness, suitable for laboratories with strict requirements for air environment.
Rapid acceleration and deceleration can complete experimental operations in a short period of time.
Safe and reliable door lock system
Adopting an induction electronic door lock, it is easy to operate.
Equipped with an emergency door opening device, it can ensure sample safety even in the event of power outages or abnormal situations.
Door lock detection, overspeed, overtemperature, imbalance and other comprehensive self inspection and protection ensure experimental safety.
Intelligent operation control
The microcomputer processor provides precise control, ensuring stable and controllable operation.
LCD display screen, real-time display of operating parameters such as speed, time, temperature, etc.
Supports storing and calling 10 commonly used programs, greatly improving operational efficiency.
Provide 10 acceleration curves and 10 deceleration curves to help users achieve the best separation effect.
Efficient freezing and temperature control system
Adopting imported fluorine free compressor units, green and environmentally friendly, with stable operation.
The centrifugal chamber is wrapped with high-quality copper tubes and uses full soldering technology to significantly improve cooling efficiency.
Fast cooling speed: It only takes 4 minutes to lower the temperature from 25 ℃ to 4 ℃.
Equipped with automatic temperature control technology, the temperature control accuracy reaches ± 1 ℃, ensuring stable sample storage.
Durable and sturdy structural design
The whole machine is made of steel structure, which is stable and durable.
304 stainless steel centrifugal chamber, with strong corrosion resistance and easy cleaning.
Multi layer protection and three-level vibration reduction design ensure smooth operation, and the automatic balancing function effectively reduces vibration.
Diversified rotors and adapters
Provide a variety of aviation aluminum alloy rotors that support high-temperature and high-pressure sterilization.
Optional transparent finger press cover, easy to install and remove, improves operational efficiency.
One machine is versatile and can meet various experimental needs in hematology, molecular biology, immunology, and more.
Humanization and space saving
Low opening height, small footprint, suitable for various laboratory environments.
Can be placed on a countertop to save limited laboratory space.
Authoritative qualification certification
Having CFDA filing and production qualifications.
Certified by ISO9001, ISO13485, CE, and other international laboratory safety standards.
Maximum speed: 6000 r/min
Maximum capacity: 6 × 100 ml (angular rotor)
Maximum relative centrifugal force: 3660 × g
Temperature control range: -20 ℃~40 ℃
Speed control accuracy: ± 10 r/min
Temperature control accuracy: ± 1 ℃
Timing range: 1 s~99 min 59 s
Noise level: ≤ 58 dBA
Net weight: 42 kg
Power supply: AC220V, 50Hz, 5A
Dimensions: 475 × 485 × 260 mm
Packaging size: Wooden crate 585 × 570 × 490 mm
| Serial number | Rotor type | Maximum speed (r/min) | Maximum capacity (ml) | Maximum centrifugal force (×g) | Remarks |
|---|---|---|---|---|---|
| NO 05137 | ANGLE ROTOR | 6000 | 6 × 15 ml | 3660 | select |
| NO 05139 | ANGLE ROTOR | 5000 | 12 × 15 ml | 3080 | select |
| NO 05143 | ANGLE ROTOR | 5000 | 6 × 50 ml | 2850 | select |
| NO 05147 | ANGLE ROTOR | 5000 | 6 × 100 ml | 3130 | select |
| NO 05146 | ANGLE ROTOR | 6000 | 4 × 100 ml | 3790 | select |
| NO 05142 | ANGLE ROTOR | 6000 | 4 × 50 ml | 3628 | select |
| NO 05244 | ANGLE ROTOR | 4000 | 16 × 5/7 ml | 2200 | select |
| NO 05221 | Horizontal rotor | 5000 | 6 × 10 ml | 3460 | select |
Hospitals and blood stations
Blood separation: components such as serum, plasma, red blood cells, white blood cells, etc.
Pre transfusion testing, blood preservation, and related experiments.
Molecular Biology and Cytology
Extraction and purification of DNA and RNA.
Protein precipitation, cell collection and separation.
Chemistry and Physics Research
Separation and purification of multi-component substances.
Chemical sample processing under low temperature conditions.
radioimmunology
Provide a stable freezing environment to protect the samples for radioimmunoassay experiments.
Warranty period: 3 years.
Service commitment: If the equipment malfunctions during the warranty period, we will implement a "replacement only, no repair" policy to minimize laboratory downtime losses.
After sales support: The manufacturer provides operation training, remote guidance, and quick response services.
Certification guarantee: Through international certifications such as ISO and CE, quality is guaranteed.
The L6 desktop low-speed cryogenic centrifuge has the core advantages of high-performance motors, precise freezing systems, intelligent control, rich rotor selection, and comprehensive safety design, making it an ideal choice for scientific research institutions, hospitals, blood stations, and teaching laboratories.
Changsha Shi Ge Yan Biotechnology Co., Ltd. provides a 3-year warranty for L6, with only replacement and no repair after-sales service, reflecting the manufacturer's confidence in product quality and sense of responsibility to customers. Whether it is medical research, clinical testing, or biochemical research, the L6 cryogenic centrifuge can become a reliable assistant for laboratory personnel with excellent performance and safety assurance.
