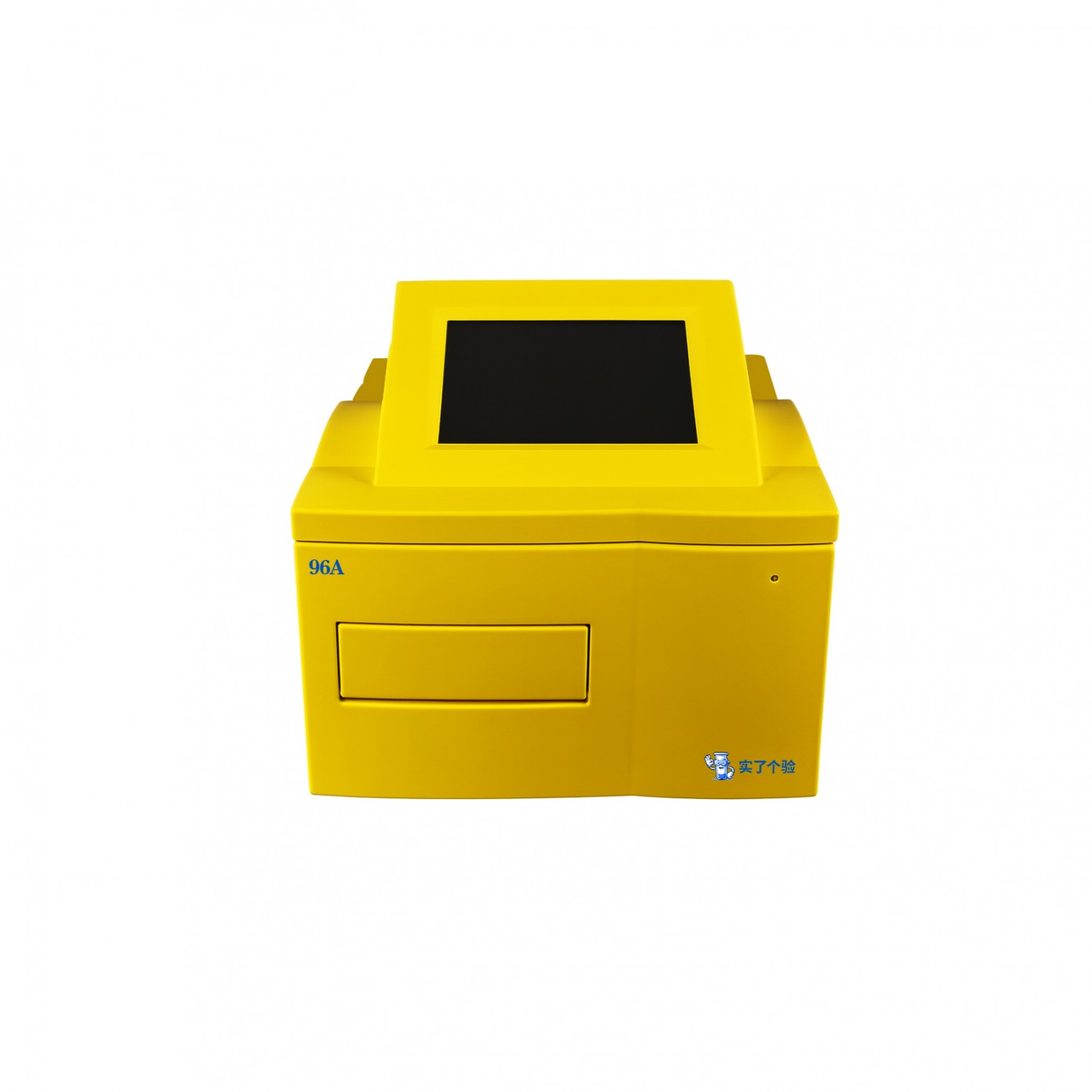

Article number 96A enzyme-linked immunosorbent assay analyzer is a high-performance laboratory testing equipment independently developed and produced by Changsha Shi Ge Yan Biotechnology Co., Ltd. As a professional fully automatic enzyme-linked immunosorbent assay analyzer, this product has reached the leading level in hardware configuration, optical system, operating experience, data processing capability, and is in line with international mainstream technology.
This device is widely used in multiple fields such as medical testing, life science research, food safety testing, drug development and quality control, and can meet the diverse needs of users in clinical diagnosis, scientific research experiments, and industrial applications.
This model of product pays attention to stability, accuracy, and intelligence in the design process, achieving full process optimization from detection to data analysis, greatly improving experimental efficiency and result reliability.
The manufacturer solemnly promises that the entire machine is guaranteed for three years, with only replacement and no repair, eliminating any worries for users.
Equipped with 8-inch color LCD display screen,adopting full touch operation, the interface is intuitive and clear, making it easy for experimenters to quickly grasp.
Support Visual board function,can display the entire board information and avoid errors caused by chaotic sample layout.
In addition to independent operation, it can also be connected to an external computer to achieve more powerful analysis and management functions through supporting workstation software.
Adopting an eight channel vertical optical path system, the detection speed is fast and the repeatability is good.
The optical path system is designed to be fully enclosed, avoiding external light interference and requiring long-term maintenance.
Equipped with imported high-sensitivity detectors to achieve high accuracy in signal detection.
The light source is a DC12V 22W imported halogen lamp with energy-saving management function and longer lifespan.
The filter wheel can load 15 filters, with commonly used wavelengths of 405, 450, 492, and 630nm as standard, and others can be selected according to needs to meet different experimental schemes.
External replacement of filters is extremely easy to operate and does not require professional maintenance personnel.
Support endpoint method, kinetic method, inhibition rate analysis, universal mode multiple detection modes.
Can be carried out single wavelength, dual wavelength, and multi wavelength measurements,adapt to different experimental design requirements.
Equipped with accurate center positioning function,ensure accurate data and stable results.
The incubation function range is room temperature+4 ℃~50 ℃, with an accuracy of 37 ℃± 0.5 ℃ (optional).
Three level vibration plate function, adjustable speed, time can be freely set from 0-255 seconds to ensure the uniformity of the reaction system.
Automatic sample injection detection, automatic opening and closing of the chamber door, laboratory personnel do not need to manually open the lid.
Intelligent operation throughout the entire process effectively reduces human error.
Randomly equipped with professional computer-based enzyme-linked immunosorbent assay (ELISA) analysis software, supporting functions such as project detection, data processing, curve fitting, threshold judgment, quality control evaluation, database management, and custom report forms.
The interface includes COM+USB, supporting communication, printing, and USB data storage.
Light source: DC12V 22W imported halogen lamp, equipped with power energy-saving management
Optical path: 8-channel vertical optical path system
Wavelength range: 400-1000nm (optional 340-1100nm)
Filter: Standard configuration includes 405, 450, 492, 630nm, other wavelengths are optional, with a maximum of 15 filters
Reading range: 0-5.000 Abs
Linear range: 0-3.500 Abs
Resolution: 0.001 Abs
Accuracy: ≤± 0.01 Abs
Stability: ≤± 0.002 Abs
Repeatability: ≤ 0.2%
Incubation function: Room temperature+4 ℃~50 ℃, accuracy 37 ℃± 0.5 ℃ (optional)
Vibration board function: Three speed settings, adjustable time from 0-255 seconds
Display and operation: 8-inch color LCD screen, touch screen operation, visual board layout
Interface: COM+USB (communication, printing, USB drive)
Power supply: AC100-240V 50Hz/60Hz, wide voltage design, globally applicable
Appearance dimensions: 444mm (L) × 320mm (W) × 318mm (H)
1. Medical and Clinical Laboratory
In the laboratory department and disease control center of the hospital, the instrument can be used for ELISA detection, such as infectious disease screening (hepatitis B, AIDS, etc.), hormone level detection, tumor marker analysis, etc.
2. Life science research
Research institutes and university laboratories can utilize its high sensitivity and stability to conduct experiments related to immunology, molecular biology, pharmacology, and more.
3. Food and environmental monitoring
It can be used to detect pesticide residues, veterinary drug residues, pathogenic bacterial toxins in food, as well as pollutants and harmful factors in environmental samples.
Pharmaceutical companies can use this instrument for pharmacological and toxicological analysis in new drug development, preclinical research, and drug quality testing.
Changsha Shi Ge Yan Biotechnology Co., Ltd. adheres to the service philosophy of "customer-centric" and provides comprehensive support for every customer who purchases the 96A enzyme-linked immunosorbent assay analyzer:
Warranty Policy
The whole machine has a three-year warranty and promises to "only replace without repair", which means that if any malfunction occurs during the warranty period, the new machine or core components will be replaced directly.
Training and guidance
Free equipment installation, operation training, and maintenance guidance are provided to help users quickly master the usage methods.
Technical Support
Establish a 7 × 24-hour service hotline to provide remote technical support and quick response after-sales service.
Part supply
Provide genuine factory accessories to ensure the stability and consistency of the equipment's long-term operation.
Upgrade and Expansion
The software can be regularly upgraded to add new functional modules to meet users' future experimental needs.
As one of the core products of Changsha Shi Ge Yan Biotechnology Co., Ltd., the 96A enzyme-linked immunosorbent assay analyzer,With its high-precision detection capability, intelligent operation experience, comprehensive analysis software, and high-quality after-sales service, it has strong competitiveness among similar products.
Its promise of "three-year warranty, only replacement, not repair" further reflects the manufacturer's confidence in product quality and sense of responsibility towards users.
This product is not only suitable for medical clinical use, but also for multiple fields such as scientific research, food safety, and drug development. It is a truly efficient, stable, and reliable laboratory partner.
