Official introduction of 08 type full wavelength enzyme-linked immunosorbent assay analyzer

Company profile

Changsha Shi Ge Yan Biotechnology Co., Ltd.， Located in Wangcheng Economic and Technological Development Zone, Changsha City, Hunan Province, it is a leading laboratory instrument research and manufacturing enterprise in China. The company has passed multiple international quality system certifications such as ISO9001, ISO13485, CE, etc., and has a complete R&D center, production base, and after-sales service network.

The company always adheres to the concept of "quality as the root, innovation as the foundation", and is committed to providing high-performance, intelligent, and durable laboratory equipment for research institutes, medical institutions, food safety and environmental testing centers, and higher education institutions. The 08 type full wavelength enzyme-linked immunosorbent assay analyzer is an important representative product of the company in the field of immunological detection and scientific research analysis.

2、 Product Overview

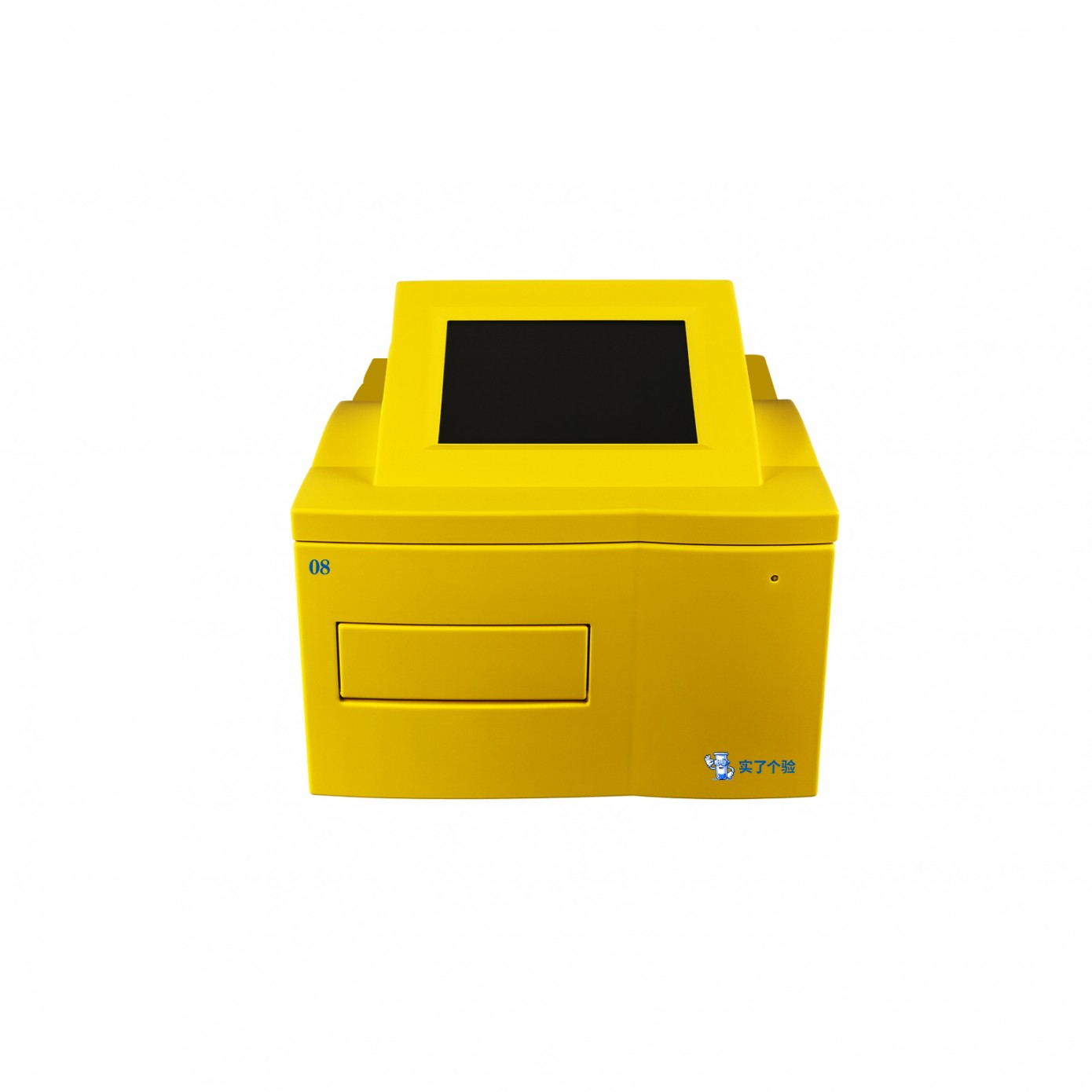

The 08 type full wavelength enzyme-linked immunosorbent assay analyzer is a high-precision, intelligent, and multifunctional laboratory testing equipment. It adopts an imported grating monochromator and a fully enclosed optical path system, which can achieve multi-mode applications from conventional ELISA detection to spectral scanning, fully meeting the diverse needs of scientific research and clinical practice.

The equipment is equipped with an 8-inch industrial grade LCD touch screen,and innovatively adopting a rotating screen design,provide users with a comfortable and flexible operating experience. Combined with professional analysis software, the 08 model can provide users with a complete solution for data detection, processing, and management.

3、 Main features

Excellent optical system

Adopting imported grating monochromator with a wavelength range of 190-1000nm;

Wavelength accuracy ≤± 1nm, repeatability ≤± 0.2nm;

The absorbance resolution is 0.001Abs, and the internal calculation accuracy is as high as 0.0001Abs;

Fully enclosed optical path, effectively avoiding external interference.

Humanized interactive experience

8-inch industrial grade LCD screen, full touch operation, intuitive interface;

Innovative rotating screen design, supporting dual operating perspectives for sitting and standing positions;

The sample board, detection mode, and result display are clear at a glance.

Multi functional detection mode

Support endpoint method, kinetic method, and inhibition rate measurement;

Can perform single wavelength, dual wavelength, and multi wavelength detection;

Equipped with spectral scanning function, it can perform full wavelength scanning on colorimetric dishes or microplates.

Auxiliary functions and expandability

The vibration board is adjustable in three levels, with a time range of 0-255 seconds;

Incubation function (optional): Room temperature+4 ℃~50 ℃, temperature control accuracy ± 0.5 ℃;

Support standard 1cm colorimetric dishes to expand application scenarios.

Professional software support

Project testing, data processing, curve fitting, and quality control evaluation;

Support database management and customization of experimental reports;

Convenient data export, supporting USB storage and printing.

international design

The power supply supports AC100-240V 50/60Hz wide voltage, globally applicable;

COM and USB interfaces facilitate the connection of external devices.

4、 Technical parameters (partial)

Wavelength range: 190-1000nm

Absorption range: 0.000-5.000Abs (@ 450nm)

Linear range: 0.000-3.000 Abs (@ 450nm)

Resolution: 0.001Abs (display/print), internal calculation 0.0001Abs

Repeatability: CV ≤ 0.2%

Stability: ≤± 0.002Abs

Vibration board function: adjustable in three levels, time 0-255 seconds

Incubation function: Room temperature+4 ℃~50 ℃ (optional), temperature control accuracy ± 0.5 ℃

Size: 444 × 320 × (200-400) mm

Weight: Approximately 13kg

5、 Application Fields

Medical clinical testing: ELISA detection, tumor marker detection, infectious disease screening.

Research laboratory: molecular biology, immunology, pharmacology research, and university teaching experiments.

Food and agricultural testing: pesticide residue, food additive and toxin testing, agricultural inhibition rate analysis.

Drug development and quality control: pharmacodynamic experiments, new drug screening, production quality control.

6、 After sales and service guarantee

Changsha Shi Ge Yan Biotechnology Co., Ltd. provides comprehensive after-sales service for the 08 type full wavelength enzyme-linked immunosorbent assay analyzer

Three year warranty, only replacement without repair, to avoid the risk of experimental interruption;

Remote and on-site technical support ensures that users can quickly master the use of equipment;

Long term supply of original factory accessories and consumables to ensure long-term stable operation of equipment;

Software upgrade and feature expansion services to support future experimental needs.

7、 Conclusion

The 08 type full wavelength enzyme-linked immunosorbent assay (ELISA) analyzer integrates high-performance optical detection, intelligent interactive design, multifunctional applications, and improved after-sales service. It is an important achievement of Changsha Shi Ge Yan Biotechnology Co., Ltd. in the fields of immunology and scientific research detection.

With a three-year warranty and an after-sales commitment of only replacement and no repair, we are committed to providing more stable, reliable, and efficient experimental tools for scientific research and clinical users.

Changsha Shi Ge Yan Biotechnology Co., Ltd. will continue to adhere to the principle of "quality as the root, innovation as the foundation", continuously launch high-performance experimental equipment that meets user needs, and work together with scientific researchers to create a better future.
