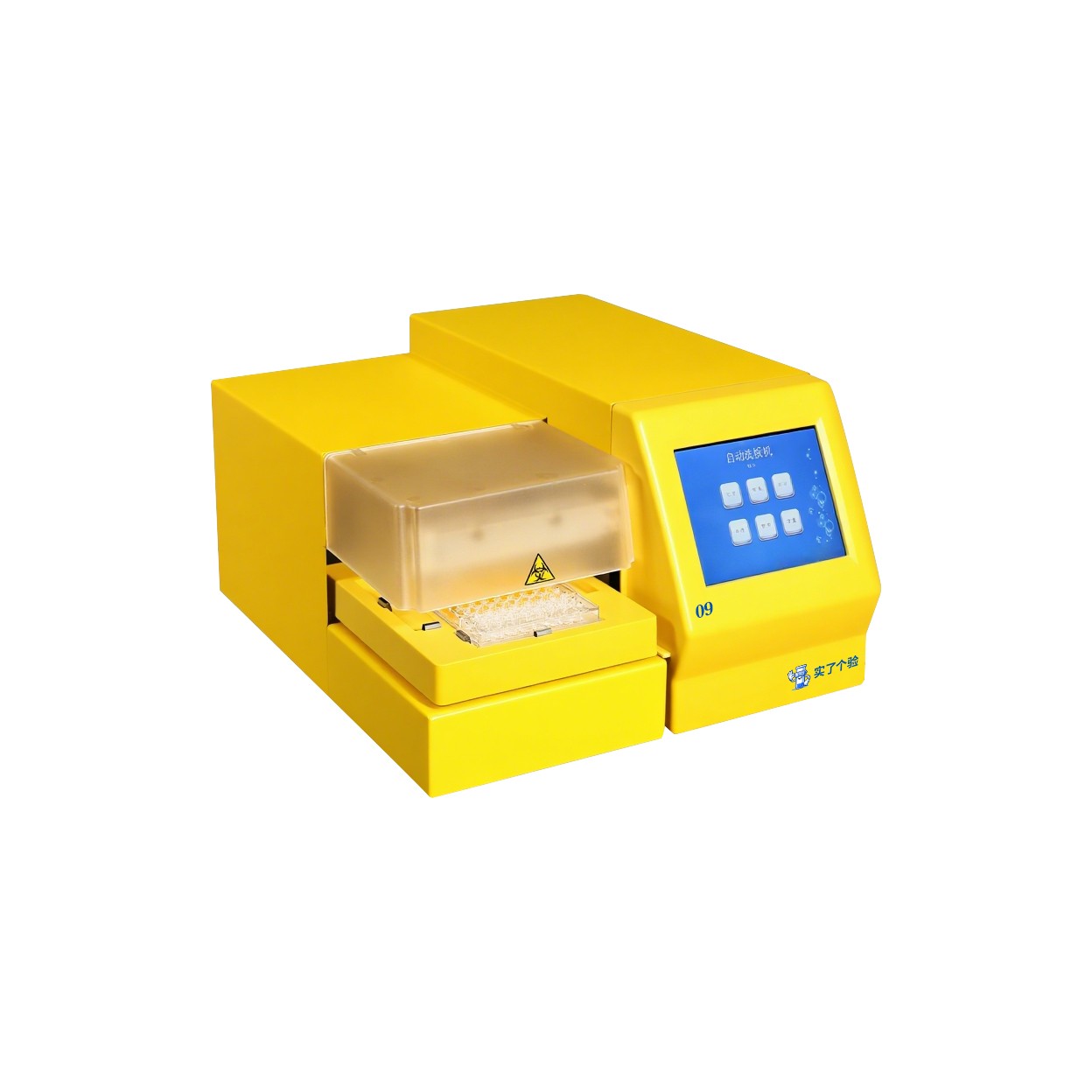

Microplate Washer

Changsha Shi Ge Yan Biotechnology Co., Ltd. has been committed to providing high-quality and high-performance laboratory instrument solutions to global customers since its establishment. The company is located in Changsha, Hunan Province, China, and has become a leading manufacturer of experimental equipment in the industry through continuous technological innovation and product research and development. Especially in industries such as biomedical, environmental monitoring, and food testing, Changsha Shi Ge Yan has won the trust of many customers with its excellent design and rigorous quality control.

The company's products in the field of laboratory instruments cover a variety of functions, including various high-performance washing machine series. As an important member of the company's products, the 110 type multifunctional washing machine meets the needs of scientific research, medical and industrial laboratories for efficient cleaning equipment with its comprehensive functions, intelligent operating interface and precise technical parameters.

Characteristics of 110 type multifunctional washing machine

Efficient operating system

The 110 type multifunctional washing machine is equipped with a 5.6-inch color LCD display screen, with a simple and intuitive operation interface. Users can complete all operations through the touch screen, easily switching between cleaning, wrapping, and sealing functions. The equipment adopts advanced human-computer interaction technology, making laboratory operations more convenient and efficient.

Multi-functional integration

The 110 type washing machine has three functions: microporous plate wrapping, plate washing, and sealing, which can meet the needs of different experimental processes. Whether it is the cleaning of enzyme-linked immunosorbent assay (ELISA) plates or the encapsulation and sealing operations in other biomedical tests, the equipment can be quickly and accurately completed.

Powerful cleaning system

This device comes standard with 4 inlet channels and 1 waste channel, supporting multiple cleaning modes. Using non positive negative pressure technology, we offer two methods of cleaning: strip cleaning and plate circulation cleaning. Users can choose between standard speed cleaning or rapid cleaning mode according to their actual needs. In addition, it has a central cleaning, two-point cleaning, and anti cup bottom scratch design to ensure that the cleaning of each hole position achieves the desired effect.

Flexible parameter settings

The 110 type washing machine provides flexible operating parameters and can adjust the injection accuracy, injection speed, injection time, suction time, and pressure according to experimental requirements. When the injection accuracy reaches CV ≤ 3% (200ul), the fastest injection speed can reach 36 seconds/plate, about 100 plates/hour. The injection and suction time can be set to 0-9 seconds according to the needs, flexibly meeting various experimental requirements.

Ultra long soaking time design

This device provides a soaking time adjustment function of 0-24 hours, allowing users to perform long-term soaking treatment on samples according to experimental requirements, ensuring diversified cleaning effects.

Accurate vibration plate function

The vibration board function supports time settings from 0 to 24 hours, with adjustable hours, minutes, and seconds. There are 3 levels of selection for the strength of the vibration plate (from weak to strong), and it can be adjusted according to actual cleaning needs, ensuring diverse requirements for the vibration plate function in different experiments.

Program Storage and Management

The 110 type washing machine supports user programming function and can store up to 200 sets of cleaning programs. Users can preset, delete, modify, and call programs, greatly improving the efficiency of experiments. The device also supports real-time program modification, helping users flexibly adjust the cleaning process according to experimental changes.

Liquid level warning function

Equipped with a waste liquid bottle full alarm function to ensure timely detection of problems during the experiment and avoid experimental accidents caused by waste liquid overflow.

Intelligent energy-saving design

The 110 type washing machine not only supports 7 * 24-hour continuous operation, but also has energy-saving management functions during non working periods, effectively reducing equipment energy consumption and extending equipment service life.

Main technical parameters

Hair washing design

Standard configuration includes one 8-needle and one 12 needle shampoo, with a double row needle design and detachable cleaning to ensure even and thorough cleaning of each hole.

Applicable board type

Suitable for flat bottomed, U-shaped, V-shaped, C-type 96 well standard enzyme-linked immunosorbent assay plates or strip plates, and can store 20 different specifications of plate types to meet diverse needs.

Cleaning channel

Standard configuration includes 4 inlet channels and 1 waste channel, and users can choose different channel combinations according to their experimental needs.

Injection accuracy

The precision of liquid injection is CV ≤ 3% (when 200ul), ensuring accurate liquid distribution.

Injection speed

The fastest injection speed is 36 seconds per plate, or about 100 plates per hour, suitable for large-scale and high-efficiency experimental needs.

Residual liquid volume

The residual liquid volume per well is ≤ 1uL, ensuring that each well is thoroughly cleaned to reduce waste.

Cleaning frequency and row number

The cleaning frequency can be set from 0 to 99 times, and the cleaning rows can be set from 1 to 12 rows. It supports cross row cleaning and meets various cleaning needs.

Pressure setting

The injection pressure can be adjusted to levels 1-5, supporting flexible cleaning function to ensure adaptability to different experiments.

Soaking and vibration time

The soaking time can be adjusted from 0-24 hours, and the vibration plate time can be adjusted from 0-24 hours, providing flexible cleaning solutions to meet various laboratory requirements.

Application field

The 110 type multifunctional washing machine is widely used in fields such as biomedicine, food testing, and environmental monitoring, and is particularly suitable for multiple biological detection experiments such as enzyme-linked immunosorbent assay (ELISA). The high intelligence and multifunctional integration of the equipment make it an indispensable tool in modern laboratories.

Quality assurance and after-sales service

Changsha Shi Ge Yan Biotechnology Co., Ltd. provides a three-year warranty service for the 110 type multifunctional washing machine, adopting a "replacement only, no repair" policy to ensure that customers can receive timely replacement in case of any quality problems with the equipment, ensuring the long-term stable operation of the equipment. The company also provides comprehensive after-sales service support to ensure that users can enjoy high-quality technical support and services throughout the entire lifecycle of the equipment.

Conclusion

As one of the star products of Changsha Shi Ge Yan Biotechnology Co., Ltd., the 110 type multifunctional washing machine has become a leading choice in the field of laboratory cleaning equipment due to its innovative design and excellent performance. Whether it is precise liquid injection function, flexible program settings, or ultra long soaking time and powerful cleaning mode, they can all meet the needs of modern laboratories for efficient and intelligent equipment. The company will continue to be driven by technological innovation, continuously improve product quality, promote industry development, and strive to provide better laboratory equipment solutions for global customers.
