With the continuous development of scientific research and industrial experiments, centrifuges play a crucial role in separation and purification processes as basic equipment in fields such as life sciences, pharmaceuticals, clinical testing, and food safety. Especially in situations where processing large quantities of samples, high-speed centrifugation, and low-temperature control are required, high-speed freeze centrifuges have become essential equipment in laboratories.

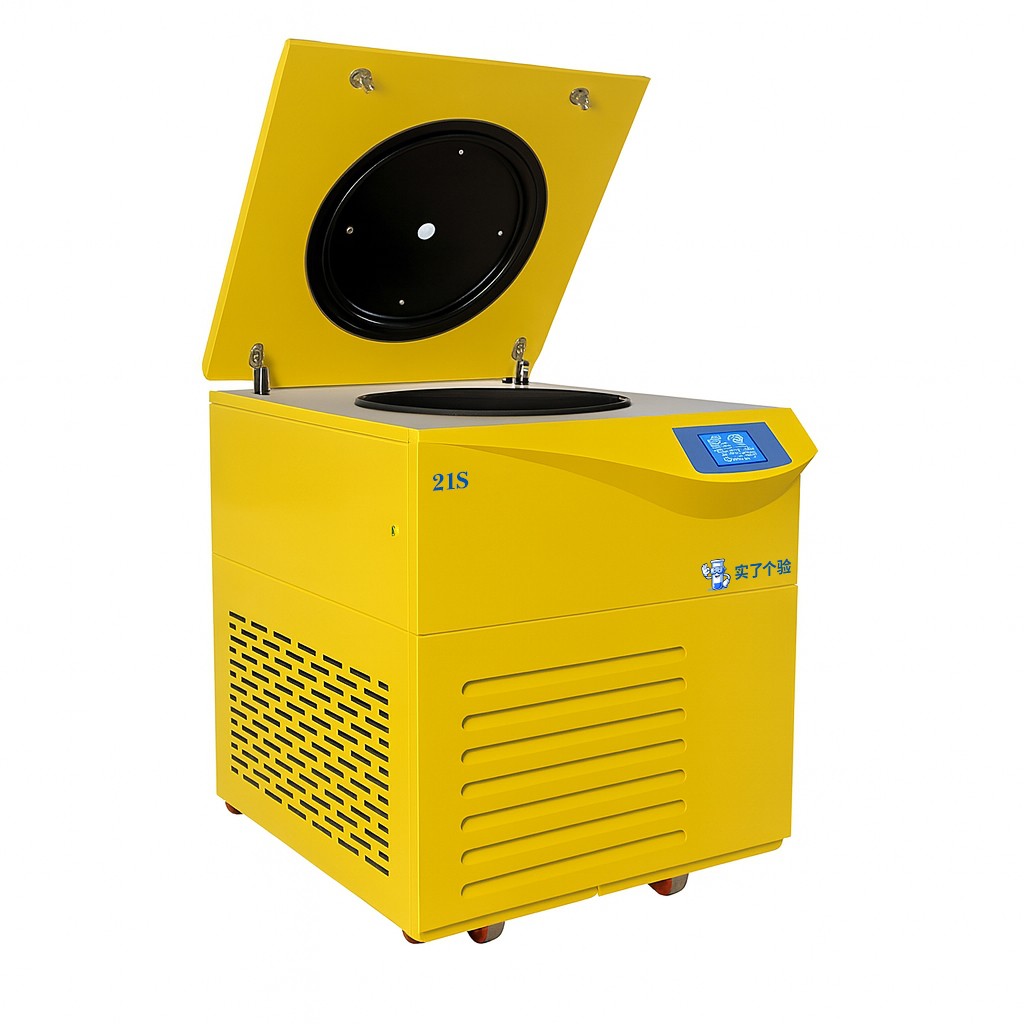

The 21S high-speed cryogenic centrifuge is carefully designed and manufactured by Changsha Shi Ge Yan Biotechnology Co., Ltd. It has advanced technologies such as brushless high torque variable frequency motor, flexible shaft drive system, imported fluorine free compressor unit, etc., ensuring excellent performance in high-speed centrifugation and temperature control. Moreover, with a three-year warranty and a commitment to after-sales service of only replacement and no repair, the reliability of the equipment and the smooth operation of the laboratory are guaranteed to the greatest extent possible.
This article will comprehensively introduce the technical characteristics, application fields, and comparison with other centrifuges of the 21S high-speed cryogenic centrifuge, helping users make the best choice.
Maintenance free design: The 21S high-speed freeze centrifuge adopts a brushless high torque variable frequency motor, which means that the equipment requires almost no maintenance during use, eliminating the trouble of regularly replacing carbon brushes and reducing the cost of equipment use.
No dust pollution: Due to the use of brushless motors, the equipment will not produce carbon powder during operation, ensuring a clean experimental environment, especially suitable for experiments with high requirements for laboratory environment.
Fast lifting speed: This motor provides higher power, allowing the equipment to quickly reach the set speed, reducing the waiting time for experiments and improving experimental efficiency.
Accurate speed control: The flexible shaft drive system of the 21S high-speed freeze centrifuge can directly drive the rotor, ensuring more precise speed control.
Smooth operation: The flexible shaft drive system not only reduces the burden on the motor, but also effectively reduces vibration and noise during equipment operation, ensuring a smooth and undisturbed centrifugal process, suitable for high-precision experimental requirements.
Protecting the motor: This system effectively protects the motor, reduces mechanical losses, and extends the service life of the equipment.
Easy to operate: The 21S high-speed freezing centrifuge is equipped with a 5-inch high-definition LCD touch screen, providing users with an intuitive operation interface, clear interface, and convenient function operation.
Real time display: Through the LCD screen, parameters such as speed, time, temperature, and rise and fall rate can be displayed simultaneously, and the operation of the equipment can be monitored in real time to ensure the accuracy of experimental data.
Human Computer Interaction Design: A user-friendly interface allows operators to quickly master device usage without the need for tedious training.
Environmentally friendly refrigeration: 21S adopts imported fluorine free compressor units, which not only improves refrigeration efficiency, but also meets modern environmental standards, avoiding the pollution of traditional fluorine refrigerants to the environment.
Dual circulation pipeline design: The unique dual circulation pipeline and dual electronic valve temperature control system can achieve more precise temperature control, ensuring smaller temperature changes and reducing temperature fluctuations during sample processing.
Rapid cooling: The device can reduce the temperature from room temperature to 4 ℃ within 5 minutes, ensuring the stability of temperature sensitive samples and suitable for efficient separation operations.
Automatic induction electric door lock: To ensure the safety of operators, the 21S is equipped with an automatic induction electric door lock, which automatically locks the door during equipment operation to prevent experimenters from opening the door cover during operation.
Emergency unlocking function: In emergency situations, the device is equipped with an emergency unlocking function to ensure that users can quickly open the device and take out samples.
Overspeed, overtemperature, and imbalance protection: The equipment has automatic protection functions for overspeed, overtemperature, and imbalance. Once overspeed or other abnormalities occur, the system will automatically stop running to ensure experimental safety.
High quality steel structure: The equipment body is made of high-quality steel structure, equipped with a precision steel explosion-proof protective inner sleeve, and multiple internal and external protection designs to ensure that the equipment will not be damaged abnormally during high-speed centrifugation.
Stainless steel centrifugal chamber: The use of stainless steel centrifugal chamber improves the corrosion resistance and damage resistance of the equipment, and adapts to various high-strength experimental requirements.
Three level vibration reduction system: This equipment is equipped with a three-level vibration reduction system, which effectively reduces the impact of vibration during the centrifugation process on the equipment and ensures the optimal centrifugal effect.
Maximum speed: 21000 r/min
Maximum relative centrifugal force: 46140 × g
Maximum capacity: 4 × 1000 ml
Temperature control range: -20 ℃~40 ℃
Timing range: 1 min~9 h 59 min
Noise: ≤ 65 dBA
Dimensions: 800 × 740 × 930 mm
Net weight: 300 kg
Speed control accuracy: ± 20 r/min
Power supply: AC 220V, 50Hz, 20A
Temperature control accuracy: ± 1 ℃
RPM/RCF conversion: Yes
Certification: CE, ISO9001, ISO13485, TUV
The 21S high-speed freeze centrifuge offers multiple rotor configurations to meet different experimental needs. The following are common adapter heads and their technical parameters:
| Serial Number | Product Name | Maximum Speed（r/min） | Maximum Capacity（ml） | Maximum relative centrifugal force（×g） | Remarks |
|---|---|---|---|---|---|
| NO 05149 | ANGLE ROTOR | 21000 | 24 × 1.5/2 ml | 40380 | select |
| NO 05150 | ANGLE ROTOR | 21000 | 12 × 10 ml | 44440 | select |
| NO 05151 | ANGLE ROTOR | 20000 | 16 × 10 ml | 46140 | select |
| NO 05152 | ANGLE ROTOR | 20000 | 8 × 30/20 ml | 42040 | select |
| NO 05153 | ANGLE ROTOR | 20000 | 6 × 50 ml(Round bottom) | 44710 | select |
| NO 05154 | ANGLE ROTOR | 15000 | 8 × 50 ml(Round bottom) | 27540 | select |
| NO 05155 | ANGLE ROTOR | 12000 | 8 × 100 ml | 19610 | select |
| NO 05156 | ANGLE ROTOR | 14000 | 4 × 250 ml | 27840 | select |
| NO 05159 | ANGLE ROTOR | 12000 | 6 × 300 ml | 22650 | select |
| NO 05607 | Horizontal rotor | 4000 | 4 × 800 ml | 3450 | select |
1. Biomedical research
The 21S high-speed freeze centrifuge is widely used in basic research fields such as cell separation, protein extraction, and nucleic acid purification, and is an indispensable equipment in biomedical, molecular biology, and biotechnology research.
2. Clinical testing
This device can efficiently and accurately perform operations such as blood separation and cell precipitation, and is widely used in clinical laboratory departments to help doctors accurately diagnose diseases.
3. Pharmaceutical and Bioengineering
In the fields of drug development, vaccine research, and biopharmaceuticals, the 21S high-speed freeze centrifuge can be used for drug screening, protein purification, and virus isolation.
4. Food safety and environmental testing
The 21S high-speed freeze centrifuge is widely used for pesticide residue and heavy metal detection in food, as well as for pollutant separation and purification in environmental monitoring.
Changsha Shi Ge Yan provides a three-year warranty for the 21S high-speed cryogenic centrifuge. During the warranty period, if the equipment malfunctions, users can enjoy high-quality service that only requires replacement without repair, ensuring that scientific research and clinical work are not affected by equipment problems.
2. National free shipping and formal invoicing
The company provides nationwide free shipping services and offers customers legitimate invoices to ensure the legitimacy and transparency of every transaction.
3. Quick response after-sales service
Changsha Shi Ge Yan has a comprehensive after-sales service system, providing 24-hour technical support. If users encounter any problems during use, they can receive professional assistance at any time to ensure the smooth operation of the equipment.
The 21S high-speed cryogenic centrifuge, with its advantages of high speed, large capacity, and precise temperature control, has become an important experimental equipment in scientific research, clinical practice, and industrial fields.Changsha Shi Ge Yan Biotechnology Co., Ltd.Through advanced technologies such as brushless variable frequency motors, imported fluorine free compressor units, and intelligent microcomputer control systems, the efficiency and stability of the equipment are ensured.
Through a three-year warranty and after-sales service commitment of only replacement and no repair, Changsha Shi Ge Yan has further improved the user experience and provided strong support for scholars and laboratories. Whether for scientific research experiments, clinical testing, or industrial applications, the 21S high-speed cryogenic centrifuge is a reliable and high-quality equipment.
